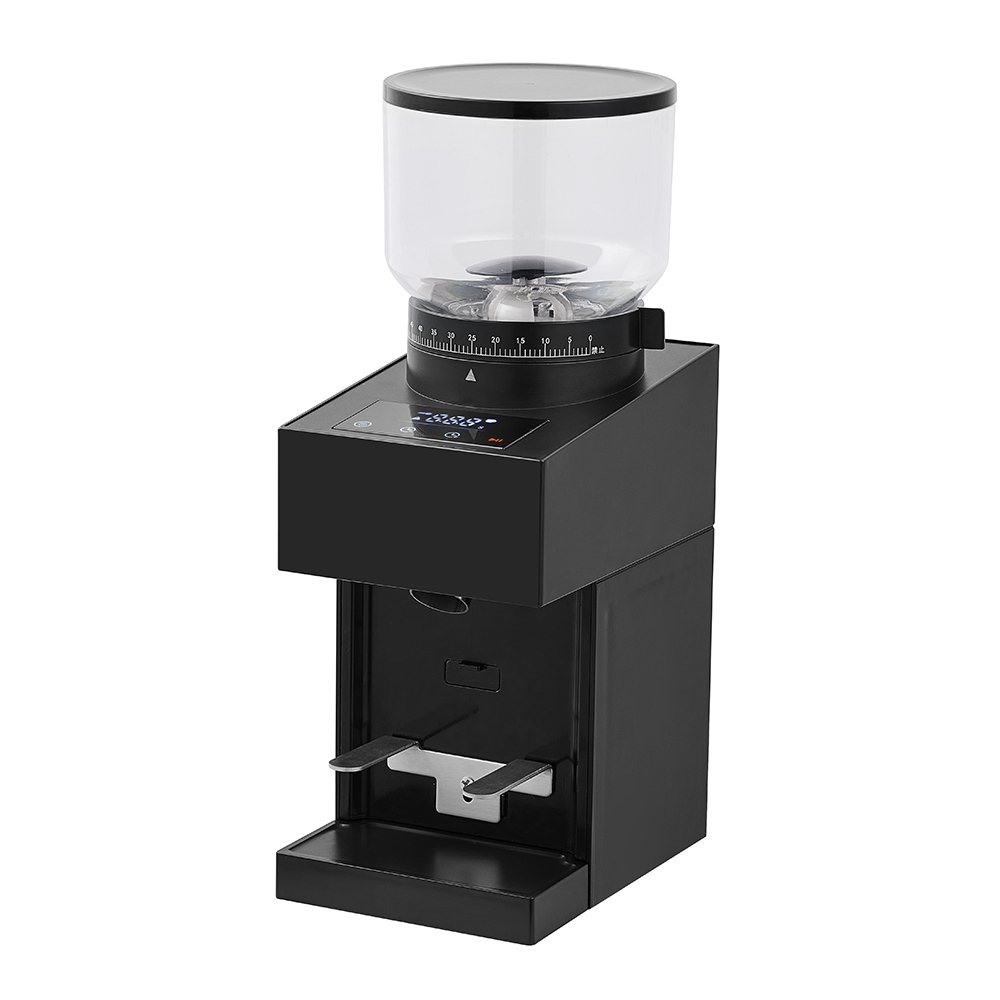

CG‑01 Multi‑Purpose Coffee Grinder

CG‑01 Multi‑Purpose Home Coffee Grinder

An ODM / OEM coffee grinder solution designed for premium home coffee and specialty coffee markets.

The CG‑01 combines a 48mm removable conical burr, low-speed gear reduction grinding system, and anti-static negative ion technology. It supports Turkish coffee, espresso, pour-over, French press, cold brew, and other popular brewing methods, helping brands expand their premium home coffee appliance product line with a reliable and market-ready grinder.

Product Positioning

The CG‑01 is not just another home coffee grinder built around basic specifications. It is designed for brands that need a professional, easy-to-demonstrate, and commercially flexible grinder for e-commerce, retail, and ODM / OEM projects.

Its key value includes:

• Wide grinding range: Minimum grind size down to 150μm, suitable for Turkish coffee, espresso, pour-over, French press, cold brew, and more.

• Stable grinding experience: Low-speed grinding helps reduce heat build-up and improve grinding consistency.

• Strong visual selling points: Fine grinding, anti-static powder control, one-hand operation, and dual dosing cups are easy to demonstrate in videos, livestreams, and product pages.

• ODM / OEM ready: Supports customization of color, logo, packaging, voltage, plug type, language, and certification versions.

Key Selling Points

1. 48mm Removable Conical Burr for Consistent Grinding and Easy Cleaning

The CG‑01 is equipped with a 48mm conical burr, suitable for premium home coffee grinding. The removable burr structure makes regular cleaning and maintenance easier, helping reduce issues related to clogging, residue, and after-sales cleaning complaints.

Suggested product copy:

48mm removable conical burr for consistent grinding and easy maintenance.

2. Low-Speed Grinding System for Better Stability

The CG‑01 uses an 11,000 RPM motor with gear reduction, bringing the burr speed down to approximately 350 RPM. Instead of focusing only on high-speed output, this low-speed design emphasizes stable grinding, better heat control, and improved flavor retention.

Key parameters:

• Motor power: 150W

• Burr speed: Approx. 350 RPM

• Transmission: Gear reduction

• Grinding direction: Low-speed, stable, heat-controlled

3. 150μm Fine Grinding for Turkish Coffee and More

With a minimum grind size of 150μm, the CG‑01 can support Turkish coffee and other fine grinding requirements. It also covers mainstream brewing methods including espresso, pour-over, French press, and cold brew.

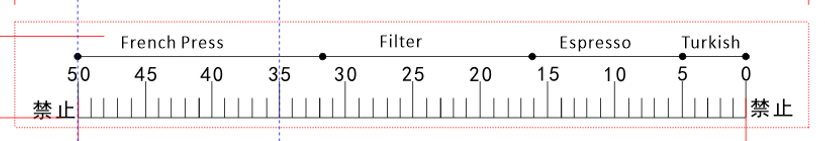

Recommended grind setting reference:

Note: Actual grinding results may vary depending on coffee bean type, roast level, humidity, grind amount, and testing conditions. For final sales materials, brands are advised to add particle size testing, real grinding photos, or video proof.

4. Efficient Grinding Performance for Daily Home Use

Under medium-coarse grinding conditions, the CG‑01 can reach a maximum grinding efficiency of 140g/min, equivalent to approximately 8.4kg/h. This provides a smooth user experience for home users, coffee enthusiasts, content creators, and light commercial demonstrations.

Note:

This value is based on medium-coarse grinding conditions. For espresso fine grinding, the actual output speed will be lower. We recommend using 18g / 20g fine grinding test results for final product claims.

5. Anti-Static Negative Ion Design for a Cleaner Countertop

The CG‑01 features patented negative ion anti-static technology to reduce static cling, powder flying, and residue. The powder output rate can reach ＞99%, making the grinder easier to clean and more suitable for video demonstrations, e-commerce selling points, and retail display.

Suggested demonstration ideas:

• Countertop comparison before and after grinding

• Standard grinder vs. CG‑01 anti-static powder control comparison

• Residue amount inside the dosing cup

• Cleaning comparison after continuous grinding

6. One-Hand Operation and Dual Dosing Cups

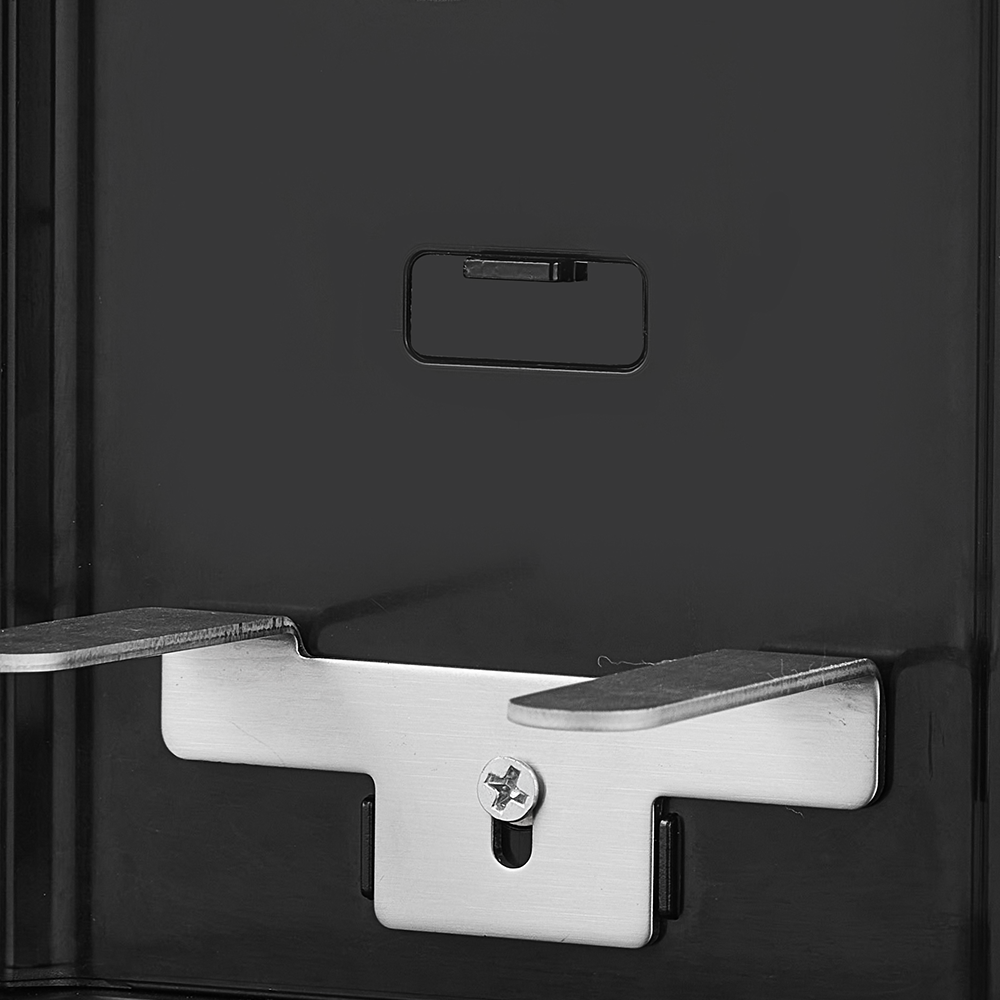

The CG‑01 uses an ergonomic micro switch for easier one-hand operation. It comes with 51mm and 58mm dosing cups and an adjustable metal holder, allowing it to fit more user habits and coffee preparation scenarios.

Standard accessories:

• 51mm dosing cup × 1

• 58mm dosing cup × 1

• Adjustable metal holder × 1

Portafilters can be arranged separately if required for bundle sales or customized projects.

Suitable Customers

The CG‑01 is especially suitable for brands and buyers looking to add a premium home coffee grinder to their product line.

Coffee Appliance and Coffee Gear Brands

Ideal for expanding a coffee grinder product line and bundling with espresso machines, pour-over kettles, coffee accessories, and brewing kits.

Coffee Roasters and Specialty Coffee Brands

Suitable for selling together with coffee beans, drippers, filters, and brewing education content to create a complete coffee solution.

E-Commerce and DTC Brands

The CG‑01’s 150μm fine grinding, anti-static function, one-hand operation, and dual dosing cup design are highly visual and suitable for short videos, livestreams, Amazon A+ pages, and independent product pages.

Retail Channels and Project Buyers

Suitable for buyers who care about batch consistency, delivery schedule, packaging customization, certification support, and regional channel projects.

Key Specifications

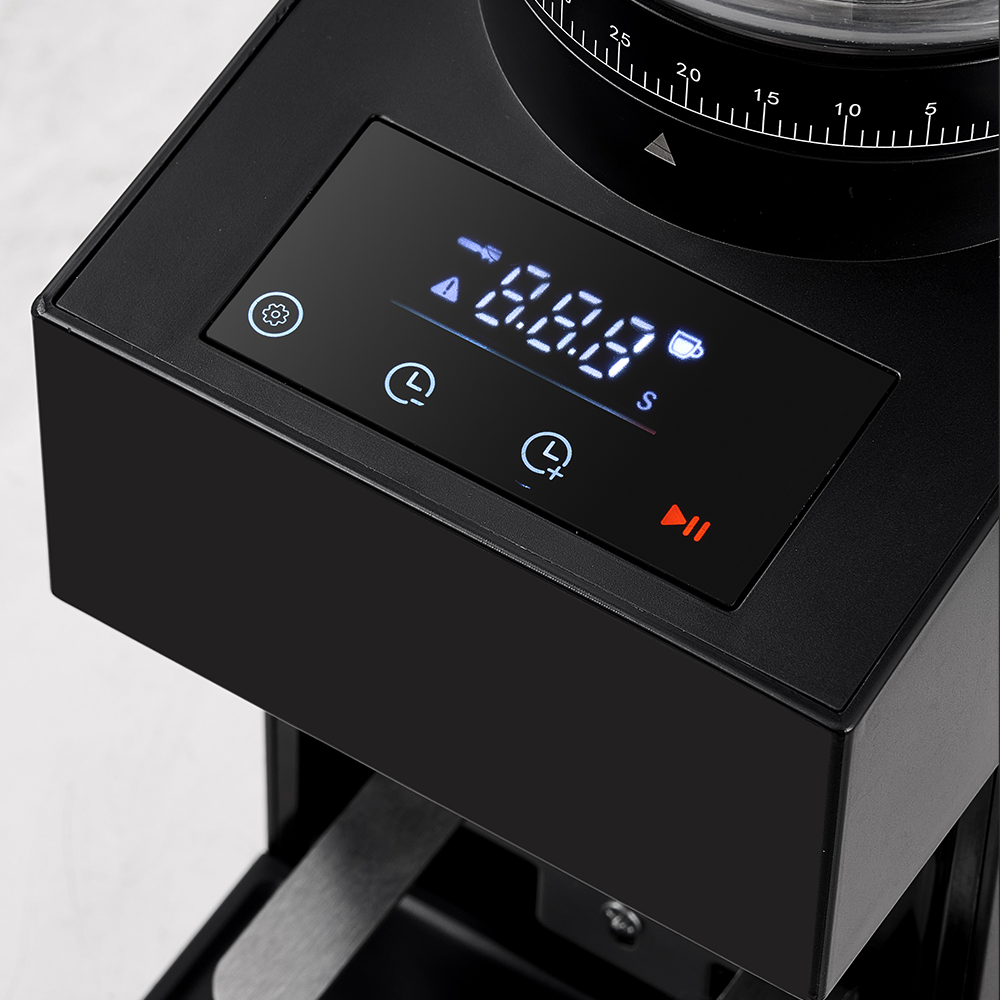

Control Panel and Dosing Logic

The CG‑01 supports both “time mode” and “cup mode” to match different user habits and brewing scenarios.

Cup Mode

The cup mode is designed based on common espresso portafilter sizes:

• 51mm basket: Single cup approx. 6–10g, double cup approx. 12–16g

• 58mm basket: Single cup approx. 8–16g, double cup approx. 16–22g

To improve compatibility, the default logic is designed around 1 cup ≈ 6g and 2 cups ≈ 12g, making it more suitable for 51mm baskets. Users with 58mm baskets can increase the cup setting according to their preferred dose.

Time Mode

The reference powder output is approximately 2g/s:

• 1 cup: Approx. 5s

• 2 cups: Approx. 10s

Note: Actual powder output may vary depending on coffee beans, roast level, grind size, and environmental conditions. Brands are advised to add local market testing data before final sales release.

ODM / OEM Customization

We can support multi-dimensional customization according to brand positioning, channel requirements, and target market needs.

Appearance Customization

• Product color

• Surface finishing

• Logo printing / laser engraving

• Panel icons and language

Packaging Customization

• Gift box

• Master carton

• User manual

• Barcode label

• Premium gift box version

Specification Customization

• Voltage version

• Plug type

• Certification version

• Language version

• Control logic adjustment

Compliance Support

Available according to project requirements:

• CE

• EMC

• LVD

• RoHS

• REACH

• UKCA

• ETL

• FCC

Project Information

FAQ

Q1: What is the positioning of the CG‑01?

The CG‑01 is positioned as a premium home coffee grinder with wide grinding coverage, low-speed stability, anti-static powder control, and a more professional user experience. It is suitable for coffee appliance brands, e-commerce brands, and channel buyers looking to upgrade their product line.

Q2: Can the CG‑01 grind for Turkish coffee?

Yes. The CG‑01 can grind as fine as 150μm, making it suitable for Turkish coffee and other fine grinding needs. We recommend adding particle size reports and real grinding videos before final sales release.

Q3: Does the CG‑01 support portafilter use?

The CG‑01 comes with 51mm and 58mm dosing cups, plus an adjustable metal holder. It can support common coffee preparation scenarios. If portafilters are required for bundle sales, they can be arranged separately according to project needs.

Q4: Does the CG‑01 have a built-in scale?

No, this model does not include a built-in scale. If a more precise weighing solution is needed, an external coffee scale can be bundled as an accessory.

Q5: Why does the CG‑01 offer both time mode and cup mode?

Cup mode is easier for general home users, while time mode is better for coffee enthusiasts who care more about dosing control. The combination helps brands communicate both ease of use and professional functionality.

Q6: Can I customize the logo and packaging?

Yes. We support custom logos, retail packaging, instruction manuals, barcodes and other private-label requirements.

Q7: What is the minimum order quantity?

The standard MOQ is 1,000 pieces. The final MOQ may vary depending on color, packaging and customization requirements.

Q8: Can you provide different voltages and plug types?

Yes. Voltage and plug options can be configured for different target markets, including the United States, Europe and the United Kingdom.

Q9: Can I order a sample before mass production?

Yes. Samples are available for product evaluation and customization confirmation before bulk production.
