How can a bottle-sized tool produce concentrated coffee far from any kitchen? A portable espresso maker uses heat, pressure, and a compact coffee chamber.
Some models need hot water and hand pumping. Others heat water and build pressure automatically.
This guide explains each stage, from filling the reservoir to cleaning the filter. You will also learn how pressure, temperature, grind, and dose shape the final cup.
A portable espresso maker follows the same basic principle as a larger espresso machine. It forces hot water through a tight bed of finely ground coffee. The water dissolves flavors, oils, acids, and aromatic compounds before entering the cup.
The Espresso - NCA - About Coffee describes espresso as a high-pressure process using nearly boiling water and finely ground coffee. The process usually takes seconds, not several minutes. That speed creates a concentrated drink and may form a golden crema layer.
Most portable units place these parts inside a narrow, travel-friendly body:
Component | What It Does | Why It Matters |
Water reservoir | Holds hot or cold water | Its size controls the serving volume |
Heating element | Warms water in self-heating models | It removes the need for a kettle |
Pump or piston | Creates pressure and moves water | Stable pressure supports even extraction |

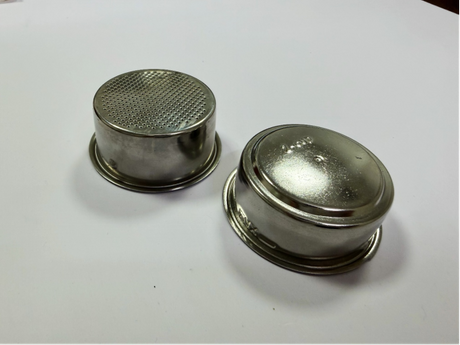

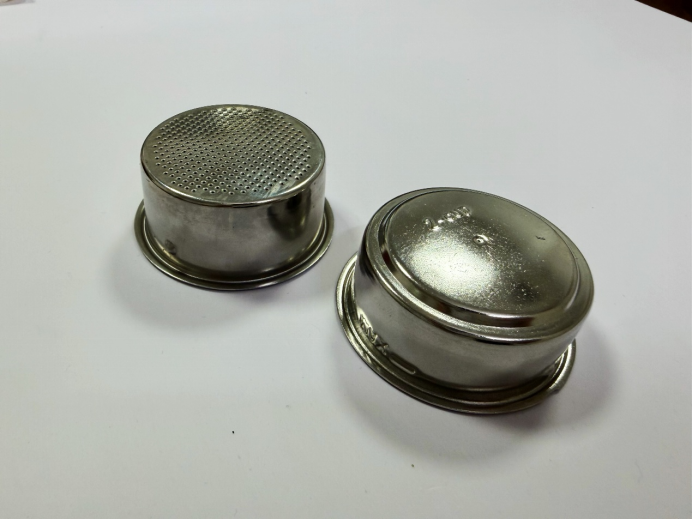

Basket or capsule adapter | Holds the coffee dose | Its seal prevents water bypass |
Filter and outlet | Screens grounds and directs coffee | Clean openings support steady flow |
Gaskets and valves | Seal the water path | They control pressure and reduce leaks |
Compact packaging saves space, but every internal passage still affects performance.
Once brewing starts, water moves toward the coffee chamber. The packed coffee creates resistance, so pressure rises behind it. That pressure pushes water through tiny spaces between coffee particles.
During this contact, water extracts soluble material from every exposed surface. A finer grind creates more resistance and slower flow. A coarser grind creates less resistance and faster flow.
The filter then holds back most solid particles. Brewed coffee passes through the outlet into the cup. Good extraction depends on balanced pressure, heat, coffee preparation, and water flow—not one large pressure number.
Manual and electric designs create pressure differently, but their water path remains similar. Both send heated water through coffee, then direct the extracted liquid into a cup.
A manual portable espresso maker uses your hand as its power source. You press a piston, squeeze a lever, or pump repeatedly. Each movement sends a small amount of water toward the basket. Resistance builds until water passes through the coffee bed.
An electric portable espresso maker replaces hand pumping with a small motor. A rechargeable battery powers the motor and pressure pump. You load water and coffee, close the chamber, then start the programmed cycle.
Design | Heat Source | Pressure Source | Best Fit |
Manual | Separate kettle or thermos | Hand pump, piston, or lever | Lightweight trips and off-grid use |
Electric pump-only | Preheated water | Battery-powered motor | Fast office or hotel brewing |
Self-heating electric | Built-in heating element | Battery-powered motor | Camping, driving, and remote travel |
Self-heating models perform two power-heavy jobs. First, the heating element raises cold water toward brewing temperature. Next, the motor drives the pump during extraction. Heating therefore uses much more battery energy than direct extraction using hot water.
The Windspro show this difference clearly. HECM-01 suits direct extraction using prepared hot water. HECM-02 adds 90-watt heating, reaching about 90°C in roughly four to five minutes.
Their listed 15-bar pump supports an actual extraction range around 8–10 bar. Both models accept compatible capsules and ground coffee. A 100ml reservoir, Type-C charging, and compact body support mobile use.
Button control patterns differ across portable products. Always confirm whether a short press starts pumping or only shows battery status. Some models use a long press for heating and another command for direct extraction.
Start by checking your model’s instructions, charge level, and capsule compatibility. Place the maker upright on a stable surface. Never begin while the outlet points toward your hand.
For ground coffee, begin near a medium-fine grind. Add the recommended dose without overfilling the basket. Level the grounds and tamp only as firmly as the product instructions suggest.
For capsules, inspect the rim before loading. A bent or incompatible capsule may not seal correctly. Insert it in the stated direction, then tighten the adapter evenly.
Follow this basic portable brewing sequence:
1. Add water. Use clean preheated water for pump-only models. Add cold water only when the machine includes approved self-heating.
2. Load coffee. Install the filled basket or compatible capsule adapter. Remove loose grounds from every sealing edge.
3. Assemble securely. Tighten the threaded extraction chamber evenly. Misaligned threads or trapped coffee can cause leaks.
4. Heat if needed. Start the heating cycle and wait for its ready signal. Keep the machine upright during heating.
5. Begin extraction. Pump steadily and consistently on manual models. Start the programmed extraction on electric models.
6. Watch the flow. The stream should appear controlled rather than spraying. Stop according to the model’s directions.
7. Release and clean. Let all internal pressure fall before opening. Remove spent coffee, rinse washable parts, and dry everything.
Coffee Format | Main Advantage | Preparation Risk |
Ground coffee | More control over roast, dose, and flavor | Wrong grind or dose can block flow |
Compatible capsule | Faster loading and less loose residue | Poor puncture or sealing can cause leakage |
If coffee runs very quickly, use slightly finer grounds or a little more coffee. If flow becomes slow, reduce the dose or grind slightly coarser. Change only one variable at a time.
Do not judge extraction by crema alone. Fresh coffee, trapped carbon dioxide, basket design, and pressure all affect its appearance. Taste and balanced flow provide better feedback.
Pressure attracts attention because manufacturers often print a large bar rating. However, maximum pump pressure differs from pressure acting across the coffee bed. The second number matters more during brewing.
Traditional espresso references offer a useful benchmark. The Specialty Coffee Association cites water around 90.5–96.1°C and pressure near 9–10 atmospheres. Portable devices may use different recipes, basket sizes, and flow patterns.
A “15-bar pump” therefore does not mean coffee receives 15 bar continuously. The pump must overcome restrictions inside hoses, valves, seals, filters, and the coffee bed. Pressure may also change throughout the shot.
Four important brewing variables must work together:
Variable | Too Low or Too Little | Too High or Too Much |
Water temperature | Thin, sharp, under-extracted flavor | Harsh or overly bitter flavor |
Grind resistance | Fast, pale flow | Slow flow, stalling, or sediment |
Coffee dose | Weak body and limited resistance | Blocked flow or poor sealing |
Tamping | Channeling around loose areas | Excessive resistance in small baskets |
For many compact ground-coffee baskets, 8–12g and a medium-fine grind provide a practical starting point. Your model may require another range. Basket depth and filter design change how much coffee fits safely.
Water loses heat while touching the reservoir, basket, grounds, and cup. Consequently, the drink can be cooler than the heater’s setpoint. Prewarming a safe cup may reduce this temperature drop.
Use taste and flow as diagnostic tools. Sour, thin coffee often suggests under-extraction. Try finer grounds, warmer water, or a slightly longer contact time. Dry bitterness may suggest over-extraction, excessive heat, or restricted flow.
Uneven spraying often points toward channeling, a dirty filter, or a poor seal. Relevel the coffee and clean the basket before changing several settings. Repeatable preparation usually improves results more than chasing a higher advertised pressure.
Portable equipment needs simple maintenance because it often travels inside bags or vehicles. Coffee oils, fine particles, and residual water can affect flavor, sealing, and flow.
After each brew, wait until pressure has fully released. Remove the basket or capsule adapter, discard the coffee, and rinse washable pieces. Clear visible filter holes gently, then let every part dry before reassembly.
Keep the motor, battery, controls, and charging port dry. Never submerge an electronic main body unless its manual specifically permits immersion. A damp cloth is safer for the outside housing.
The Windspro separates removable-part cleaning from main-body care. It also highlights capsule puncture, residual water, sealing, accidental activation, and battery performance. Those details matter when a machine travels beside clothing or electronics.
Use this quick check when brewing changes:
Problem | Likely Cause | Practical Check |
Weak, fast coffee | Coarse grind, low dose, or cool water | Adjust one variable and brew again |
Very slow flow | Fine grind, high dose, or clogged filter | Clean the filter and reduce resistance |
Sediment in cup | Powdery grind or dirty basket | Grind slightly coarser and rinse thoroughly |
Water near a seam | Misaligned threads, coffee on gasket, or damaged seal | Clean, reseat, and inspect the gasket |
No pumping | Low battery, blocked path, or incorrect mode | Recharge, clean, and review button instructions |
Coffee is cooler than expected | Heat loss through parts and cup | Prewarm approved parts and use promptly |
A little water may remain inside the channel after brewing. Drain the reservoir, wipe accessible areas, and carry the machine only as directed. Never assume a closed lid guarantees leak-free inverted storage.
Charge the device using the specified input. Avoid brewing while charging unless the manufacturer explicitly approves it. Before travel, empty all water, dry the chamber, lock any travel controls, and protect the activation button.
A portable espresso maker heats or receives water, builds pressure, and pushes water through a compact coffee bed. Its results depend on balanced temperature, actual extraction pressure, grind, dose, sealing, and cleaning.
Manual models favor simplicity, while self-heating models add independence. For portable coffee projects, contact the Windspro team to discuss suitable configurations, customization, and market requirements.
A: No, not every portable espresso maker heats water. Manual and pump-only models usually require preheated water. Self-heating electric models warm cold water internally.
A: Many aim near 8–10 bar during extraction. Maximum pump ratings may be higher.
A: Some dual-use models can, using separate baskets or adapters. Always confirm your model's capsule compatibility before buying.
A: Pressure-capable models can produce concentrated espresso. Results vary by temperature, pressure, coffee preparation, and design.
A: Rinse removable parts, dry them completely, and wipe the electronic body. Never submerge it without manufacturer approval.
